YUYANG Custom A/C Hose Assembly with Aluminum Fittings — Crimped & Leak-Tested R134a R1234YF Truck Air Conditioning Pipe
Key Specifications
| Product type | Crimped A/C hose assembly (custom-made) |
| Hose series | CA5 / CA9 / EA4 / EA48 (SAE J2064) |
| Refrigerant | R134a / R1234YF |
| Fittings | Aluminum, per drawing / OE number |
| Testing | 100% pressure / leakage tested |
| MOQ | 100 meters per size |
All specifications can be customised. Send us your requirement and we will confirm feasibility within 2 working days.

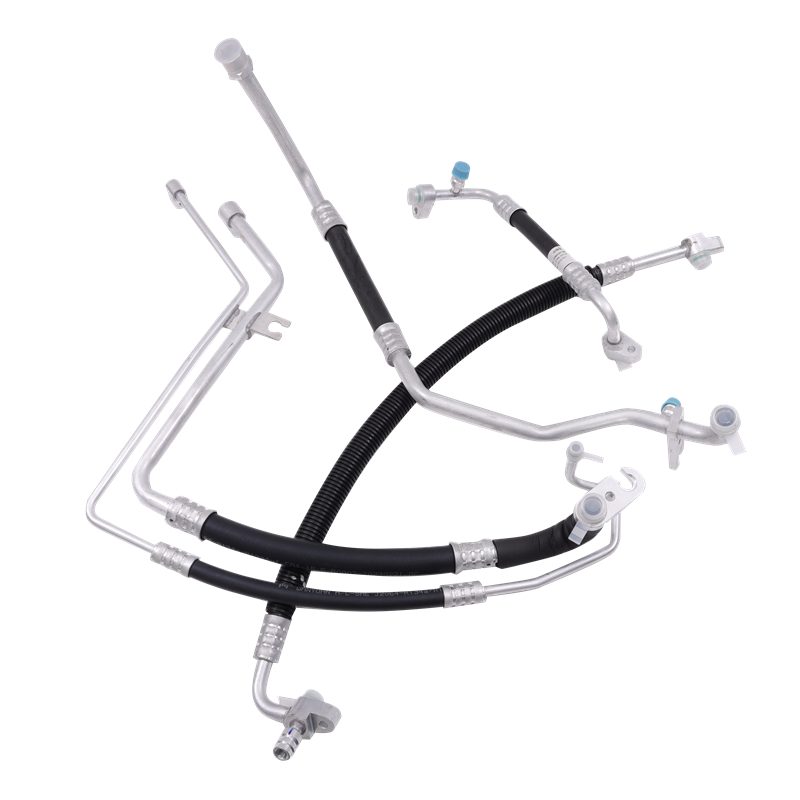

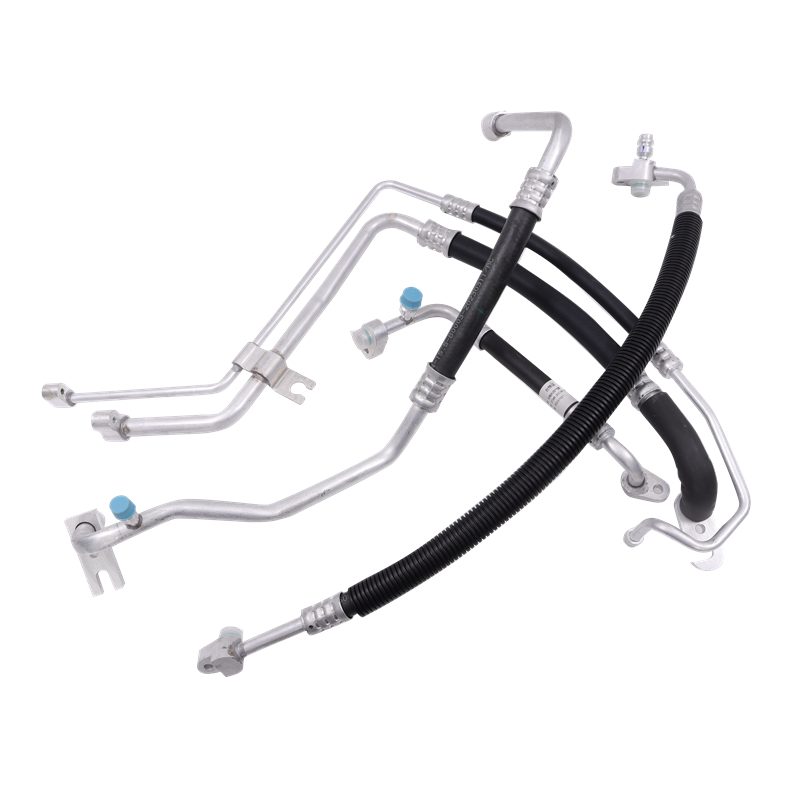

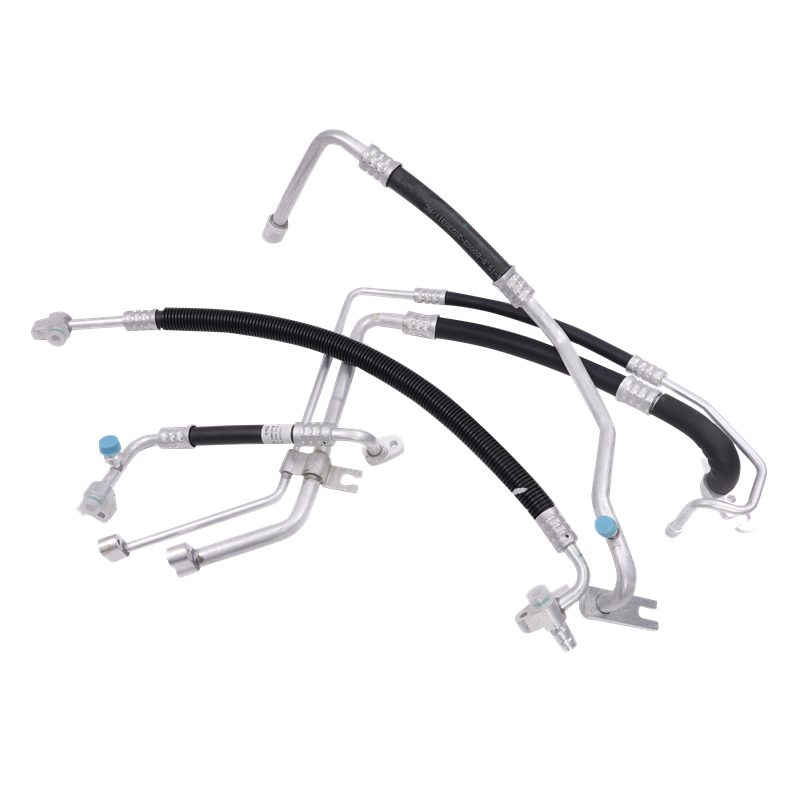

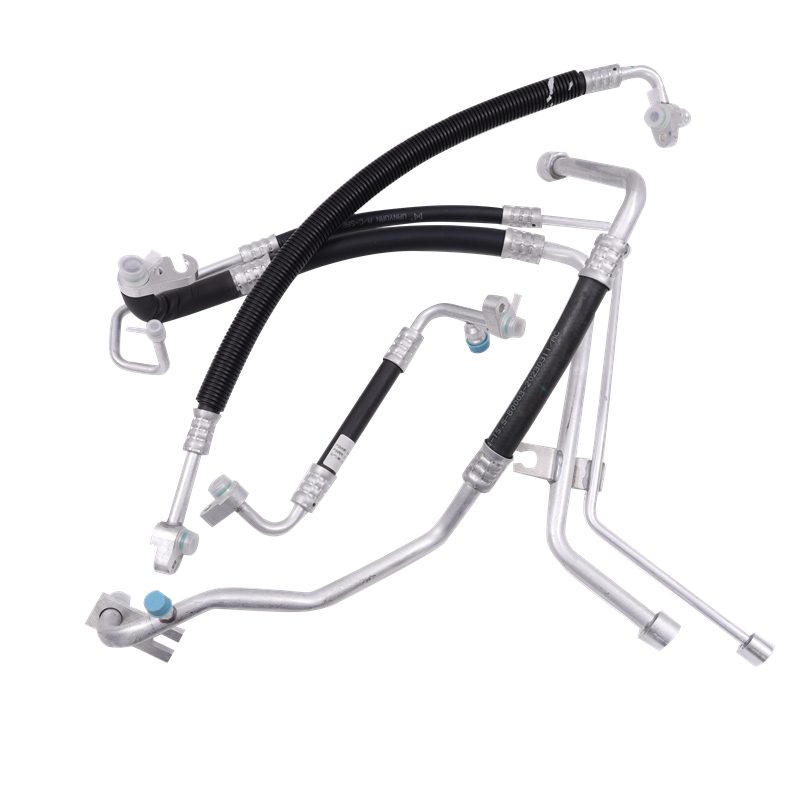

YUYANG Custom A/C Hose Assembly with Aluminum Fittings — Crimped & Leak-Tested R134a R1234YF Truck Air Conditioning Pipe is a custom-made, fully crimped air conditioning hose assembly for trucks, buses, construction machinery and refrigerated units. We build to your drawing, sample or OE number — hose series (CA5 / CA9 / EA4 / EA48), length, end fittings and crimp specifications are all configurable. Every assembly is 100% pressure / leakage tested before packing.
Key Features
- Made to spec: drawing, sample or OE number
- Hose series: CA5 / CA9 / EA4 / EA48 (all SAE J2064)
- Fittings: aluminum end fittings, crimped on CNC machines
- 100% tested: pressure / leakage test on every assembly
- In stock & fast: stocked configurations ship in 3–7 days
- Refrigerant: R134a / R1234YF systems
What We Need for a Quote
- OE number, drawing or a sample assembly
- Hose series or working pressure / temperature requirement
- Total length and both end fittings (type, angle, thread)
- Quantity
Send the details via the quote form or WhatsApp — reply within 12 hours, samples available for validation.
Quality & Test Data
Hose is dimensionally inspected and pressure tested batch by batch. Measured results from our July 2023 inspection reports (available on request):
- Burst pressure: actual measured 35 MPa (SAE J2064 requires min. 13.7 MPa)
- Proof test: 7.0 MPa hold — no leakage or abnormality
- Length change at 3.0 MPa: within +2% to −4% (measured 0% / −0.33%)
- Wall-thickness eccentricity: measured 0.15–0.33 mm (limit max. 0.4 mm)
MOQ, Stock & Delivery
- MOQ: 100 meters per size
- Stock: common sizes are in stock
- Lead time: 3–7 days after order confirmation for stocked sizes
- Custom: made to your drawing, sample or OE number
| Product type | Crimped A/C hose assembly (custom-made) |
| Hose series | CA5 / CA9 / EA4 / EA48 (SAE J2064) |
| Refrigerant | R134a / R1234YF |
| Fittings | Aluminum, per drawing / OE number |
| Testing | 100% pressure / leakage tested |
| MOQ | 100 meters per size |
| Lead time | 3–7 days (stocked), 7–15 days (custom) |
Do you accept custom lengths and fittings?
What is the MOQ?
How fast can you ship?
Which refrigerants are the hoses compatible with?
Send Your Inquiry
Tell us what you need — we reply with a quotation within 12 hours.
